Подробная информация о продукте:
|
| Максимальный ток разряда: | 100А | Размер батареи: | 442*500*140 мм |
|---|---|---|---|
| Номинальная мощность: | 100Ач | Номинальное напряжение: | 51,2 В |
| Номинальная энергия: | 5120wh | Максимальный зарядный ток: | 100А |
| Тип ячейки: | клетка lifepo4 | Зарядка напряжения отсечения: | 56,2 В |
| Стандартный ток зарядки: | 50А | Discharging предельное напряжение заряда: | 45.6V |
| Пиковый ток разряда: | 200А | Коммуникация: | CAN/RS485/RS232/Bluetooth (опционально) |
| Выделить: | 48V LiFePO4 solar battery 100Ah,wall mount solar battery emergency backup,home battery storage blackout power |
||

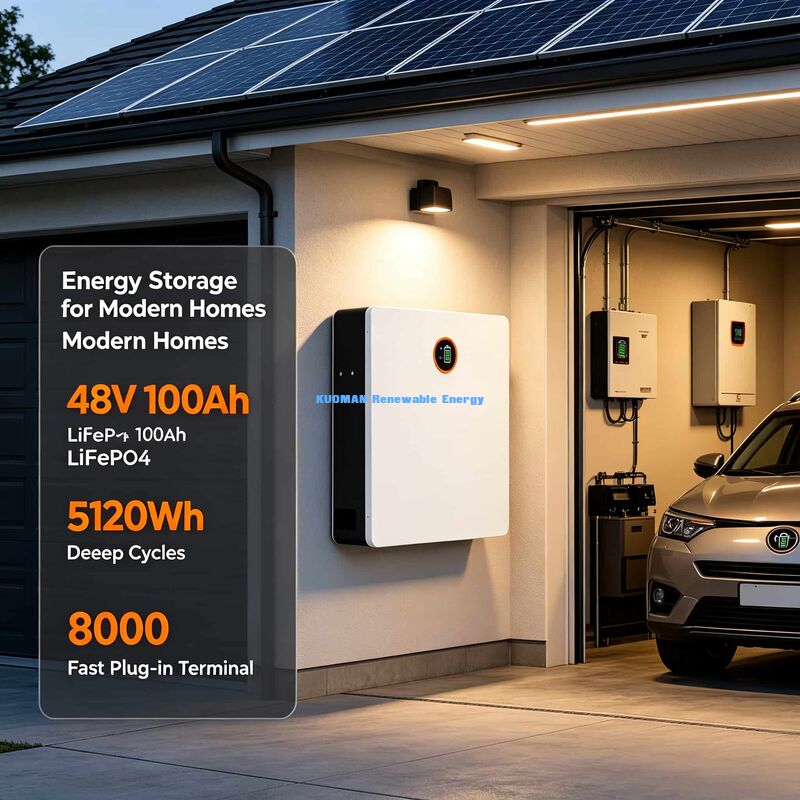

Our slim wall-mounted lithium iron phosphate battery is a premium off-grid & grid-tied solar storage solution for residential backup power, solar PV systems, and emergency power supply. Built with Grade A EVE/CATL/BYD/Gotion LiFePO4 cells, it delivers 8000 deep cycle lifespans and a 10-year full manufacturer warranty, making it the most reliable home energy storage battery on the market.
| Model | 48V100P2 |
| Nominal Voltage | 51.2V (48V system standard) |
| Nominal Capacity | 100Ah |
| Total Nominal Energy | 5120Wh / 5.12kWh |
| Cell Chemistry | Grade A LiFePO4 Lithium Iron Phosphate |
| Charge Cut-off Voltage | 56.2V |
| Discharge Cut-off Voltage | 45.6V |
| Standard Charging Current | 50A | Max Charging Current: 100A |
| Discharge Rate | 0.5C - 1C continuous |
| Operating Charge Temperature | 0℃ ~ 55℃ |
| Dimensions | 442 × 500 × 140mm (Ultra-slim 140mm thickness) |
| Net Weight | 41.8kg |
| Housing Material | Durable Metal Enclosure, Customizable Finish |
| Terminal | Fast Plug-in Connection |
| Communication Ports | CAN / RS485 / RS232 / Optional Bluetooth |
| Certifications | UN38.3, MSDS, CE, IEC, Full Sea & Air Transport Approval |
| Available Capacity Models | 25Ah / 50Ah / 100Ah / 150Ah / 200Ah / 280Ah / 300Ah |
| Lifespan Cycles | 8000 Deep Cycles |
| Warranty | 10 Years Manufacturer Warranty |
| Lead Time | 5-12 Days for Orders Under 100 Units |
| Shipping Options | Sea Freight, Air Cargo, Railway Transport |
This 48V LiFePO4 battery matches all mainstream 48V hybrid solar inverters, including Growatt, Victron, Deye, Voltronic, Sunsynk, Goodwe, Axpert and more. It supports CAN/RS485 communication for real-time data sync with inverters.
Based on average household daily consumption: A 1kW continuous load can run for around 5 hours on full charge. Actual runtime depends on your total home appliance wattage and discharge rate. Multiple batteries can be paralleled to expand total storage capacity.
Yes, this wall mount LiFePO4 battery supports multi-unit parallel connection to expand total energy storage, ideal for large home solar or commercial backup projects. The built-in BMS balances voltage between parallel units automatically.
The battery supports 8000 deep full charge cycles, equivalent to over 20 years of daily household use under regular charging-discharging habits, far exceeding traditional lead-acid gel batteries. We also provide a full 10-year manufacturer warranty.
